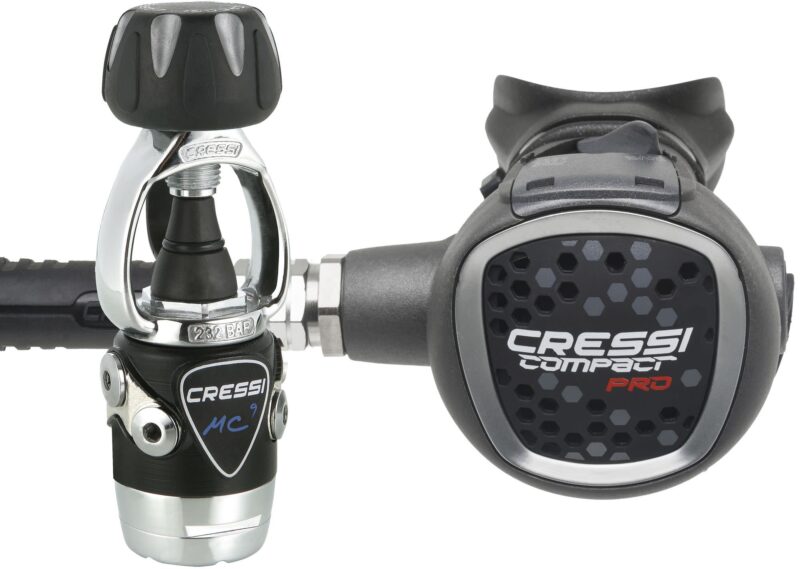

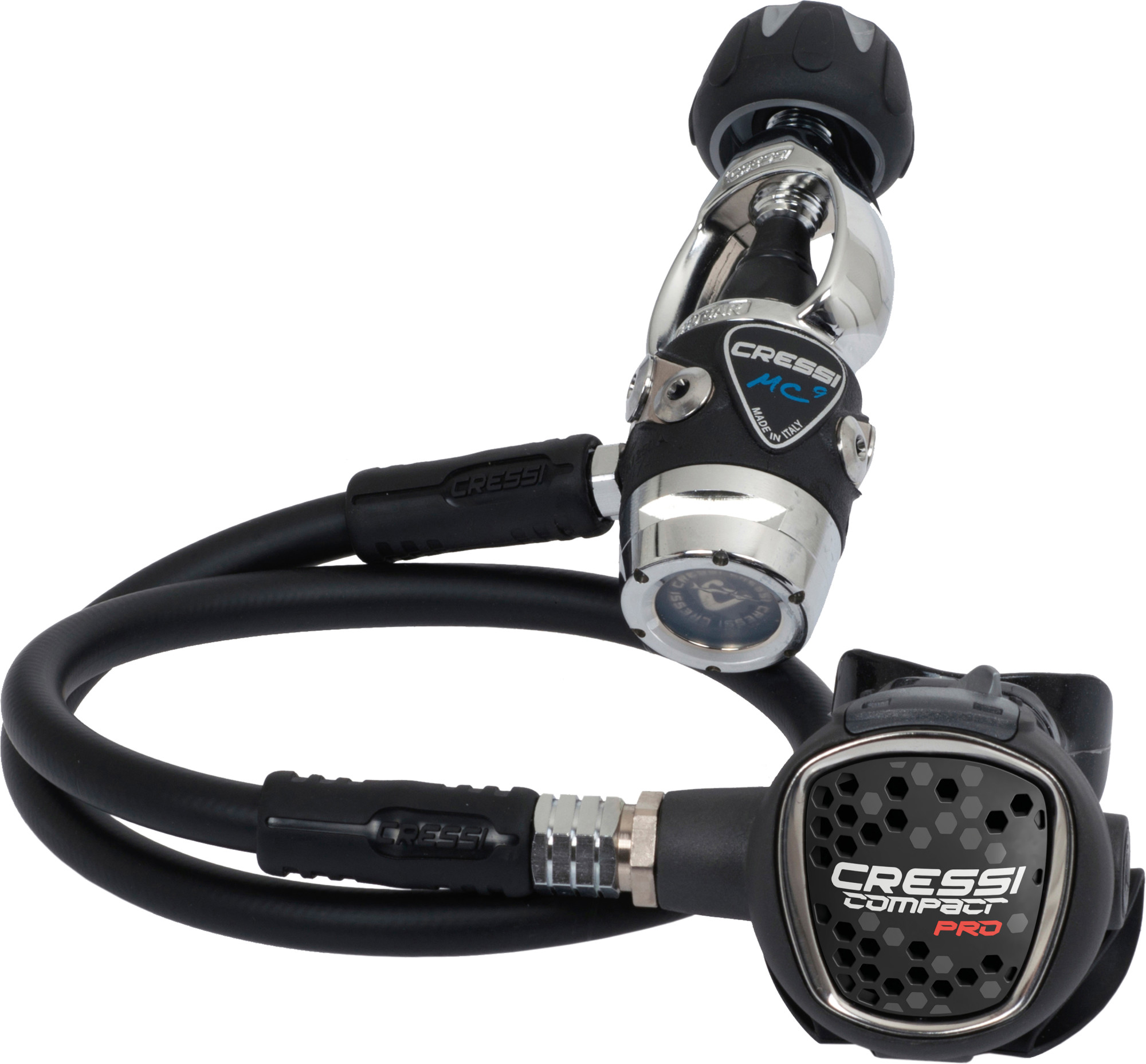

Cressi MC9-SC /XS COMPACT PRO REGULATOR INT

Technical features 1st stage:
– Balanced diaphragm (seal chamber for mc9sc)
– 2 outlets hp 7/16 unf
– 4 outlets mp 3/8 unf
– Service pressure: 300 bar (4350 psi) din version,232 bar (3365 psi) yoke version
– Calibration pressure: 10 bar
– Brass body electroless nickel plated
– High capacity conical filter electroless nickel plated
– Aisi 316 removable nozzle
– Hyper-balancing
– Anti-pressure drop pneumatic spring
– Setting spring: stainless steel with micropeening treatment
– Replaceable cylinder with anti-friction and anti-corrosion properties
– Elastomer protector
– Flow rate: 4500 l/min
– Yoke version weight: 650 gr
– Din version weight: 510 gr

Technical features 2nd stage:
– Improved reliability front cover (more impact resistant)
– Downstream system
– Adjustable venturi effect
– Patented antifriction lever
– Thermoconductive technopolymer body
– Big purge button
– Anti-scratch surface
– Bayonet-type cap holder with security lock
– Removable exhaust tee
– Weight without hose: 140 gr

Combination performance:
– Average cracking effort 7.5 mbar
– Average breathing effort 1 j/l
– Jacketed hose extremely light and flexible weight: 153 gr
– Certification en250/2014 for cold water
